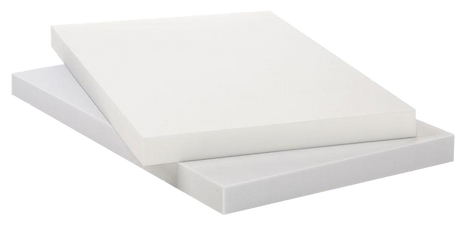

Melafoam

high performance, melamine acoustic foam

Melafoam is a special open cell foam which is lightweigh, easy to install and extremely effective in any type of space. Does not deteriorate over time and is 100% fireproof.


Thickness: 25mm / 50mm

Colors: natural white, light grey

Resists to mold (UL 181 S 11)

Class 1 fire rated product (CAN UL S 102)

Recommended installation: ceilings, upper parts of the walls

DOWNLOADS


Product sheet

Acoustic performance

Fire tests


Installation guide

APPLICATIONS

Melafoam acoustic foam panels are easy to install using construction or spray adhesives, and can be installed on smooth and rough surfaces alike. They can also be installed vertically in the grooves of ondulated metal ceilings to provide an even higher degree of absorbtion.

In an open office space, Melafoam panels can be used to reduce the noise level and improve the acoustics of the space, making it easier for people to concentrate and communicate. In a gymnasium, Melafoam is used to reduce the echo and reverberation that can occur in a large, open space, improving the sound quality for music or speech.

Upper part of walls

When installed on the wall, Melafoam should be installed as to not be touched, due to their relatively fragile nature.

Ceiling installation

The most common way Melafoam panels are installed is directly to the ceiling. They are a great solution for large spaces as installation is fast and easy.

Vertical baffle

Installed vertically as baffles, Melafoam panels provide superior sound absorbtion. This is especially true for "steeldeck" type ceilings.

SHAPES

File 2022-11-14, 2 27 26 PM.png
Square corners
File 2022-11-14, 2 27 49 PM.png
Rounded corners
Circles

SIZES

Custom fabrication available

Special shapes and sizes available upon request. Maximum cut panel size is 1200mm x 2400mm.

Larger panels may be harder to install on ceilings. Consult with a canacoustics specialist before ordering.

ACCESSORIES

Caulking gun for "sausage" tube type adhesive
3m550fc adhesive, tube
HT1685 contact spray adhesive (481g)

COLORS

WHITE
LIGHT GREY
